4DS101 - All-in-One DIY Tactile Transducer Kits Lithium Battery Powered
with Versatile Multimedia Selections
Hear, feel and live the intense, chest-thumping vibes. Revel in the thrill of victory and the agony of defeat. With the 4DS101 revolutionary gaming and entertainment system, you’ll no longer merely be playing that video game; you’ll be on the battlefield or the football pitch.
Turn movie night into adventure night with a sensorial experience that drops you right in the seat of the action.
Experience gaming and entertainment the way it was meant to be
Experience gaming and entertainment the way it was meant to be. The 4DS101 is an innovative, tactile system. Installed in your chair, couch, or bed, it transmits the sensations and vibrations of whatever you’re watching or playing through your body and into your mind.
Experience gaming and entertainment the way it was meant to be
Experience gaming and entertainment the way it was meant to be. The 4DS101 is an innovative, tactile system. Installed in your chair, couch, or bed, it transmits the sensations and vibrations of whatever you’re watching or playing through your body and into your mind.
enjoying experience unlike anything you've tried before
These vibrations are translated from the audio transmitted from your devices.
A Powerful All-in-One Sound Engine
New Dimension Technology
New Dimension Technology
Designed with the DIY Enthusiast in Mind
High Power Tactile Transducer
Choose, Your Weapon, Player and Audio Source

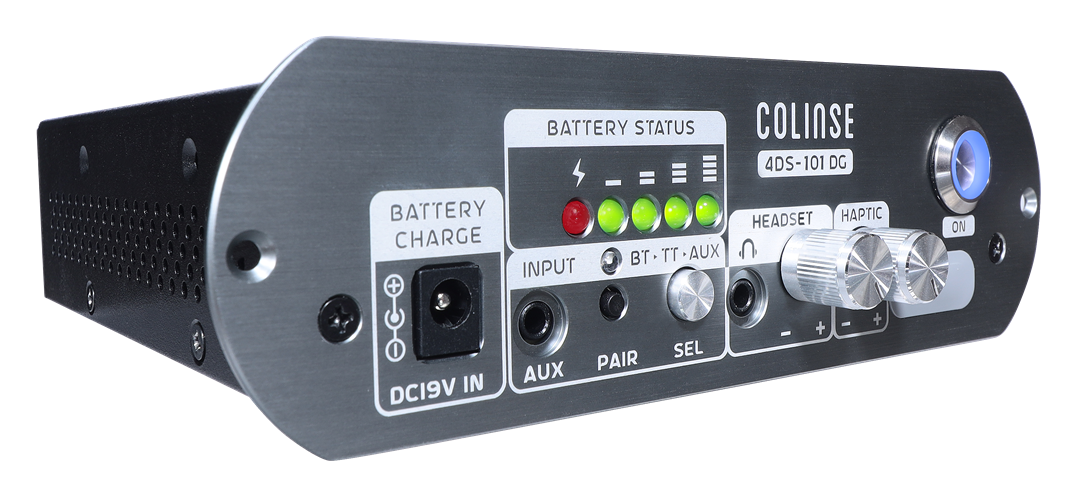

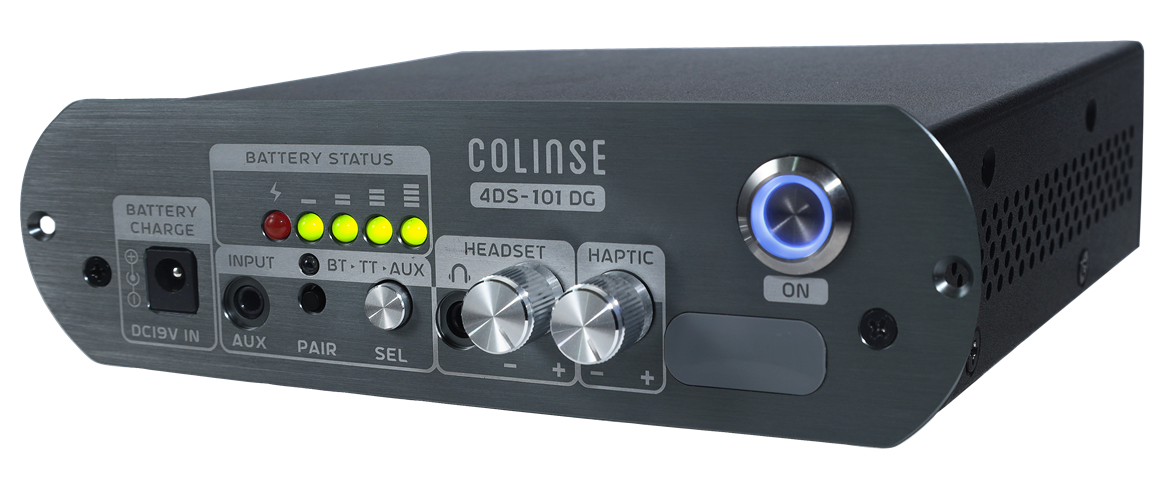

Functional Control Panel
We Make Experiences
We Make Experiences
5.8GHz High Fidelity Wireless Audio
Additionally, with ultimate 48K/24bit sound quality, you are assured the best audio performance. This high fidelity wireless transmitter can connect to any audio devices like TV, STB, PC and other audio sources.
Long-Lasting Lithium Battery
The reliable lithium battery pack of 4DS101 provides 8 hours of non-stop music playback or 4 hours of gaming with continuously intense bass effects.
Our battery packs comply with the highest safety regulations and is designed with protection against over-charging, high voltage and electrical current surges.
Connecting to Our APP Tracks
Selection Guide
4DS101-DX - Basic Model
4DS101-DG - Advanced Model
4DS Control Unit
Dual Transducers
Lithium Battery Pack
5.8GHz Wireless TV Audio System
| General | |
|---|---|
| Dimensions of Case | 150 x 40 x 130 mm, 5.9 x 1.6 x 5.1 inch |
| Dimensions of Panel | 172 x 51 mm, 6.8 x 2 inch |
| Weight | 445g, 16.7oz |
| Control Panel | Silk-printed Aluminum Alloy Panel |
| Case Material | Aluminum Alloy |
| Tactile Transducer | |
|---|---|
| Model | TTD100A |
| Dimensions | 140 x 140 x 47 mm, 5.5 x 5.5 x 1.85 inch |
| Weight | 1065 g, 2.35 lb |
| Continuous Power Handling | 100Watts Peak, 50Watts RMS |
| Frequency Range | 10Hz ~ 200 Hz |
| Nominal Impedance | 4 Ώ |
| Audio System | |
|---|---|
| Audio Connectivity | TV, Wireless Audio from W60A (optional) Bluetooth 4.1 + EDR USB Slot, Support MP3.WAV Formats AUX, Ø1/8-inch (3.5mm) Jack |
| Amplifier | Class D Amplifier, Output to Dual Transducers |
| Headset Connectivity | Output Ø1/8-inch (3.5mm) Jack |
| Volume Control | Independent Control Knobs for Vibration and Headphone |
| Power System | |
|---|---|
| Battery Connectivity | Rechargeable Lithium-ION Battery Pack |
| Single Transducer Pack | 14.8V 2900mAh, 4-Cell Panasonic Core (4DS101-S) |
| Dual Transducers Pack | 14.8V 5800mAh, 8-Cell Panasonic Core (4DS101-D) |
| Playback Time | Approximately 8-hour Continuous Use of Music Play Approximately 4-hour Continuous Use of Intense Effects |
| Battery Charging | DC 19V InputUniversal Power Adapter, 100-240VAC, 50-60Hz |
5.8GHz Wireless Audio System
| General | |
|---|---|
| Frequency Band | 5740 - 5840 MHz |
| Output Power | +15dBm |
| Sensitivity | +35dBm - 83 dBm |
| Latency | 5.6 ms |
| Frequency Response | 20 - 20K Hz |
| Receiving Range | 100FT (35M), Line-of-Sight |
| Transmitter | |
|---|---|
| Audio Input | Ø1/8-inch (3.5mm) Stereo JackOptical TOSLINK JackCoaxial Jack |
| Line Output | Ø1/8-inch (3.5mm) Stereo JackFor Ø1/8-inch Analog Audio Input Only |
| Power Input | DC5V2A, Micro USB Connection |
Package
Included in the Package
4DS101 Control Unit
Tactile Transducer TTD100A
Lithium Battery Pack
Universal Power Adapter DC19V, 100-240VAC/50-60Hz Input
Connecting Wires for Transducer
Mounting Brackets & Screws
User Guide
Additional Wireless System WT60A
